• Multi-frequency Segmental Analysis
• High Correlation with DEXA (R2=0.984)
• Tetra-polar electrode method using 8 points electrode
• Blind Mode : Hide Weight and Fat information from Screen for Private Measurement
• Rotatable Hand Electrodes for Comfortable Measurement Posture
• Compact Design for Easy Carrying and Storage

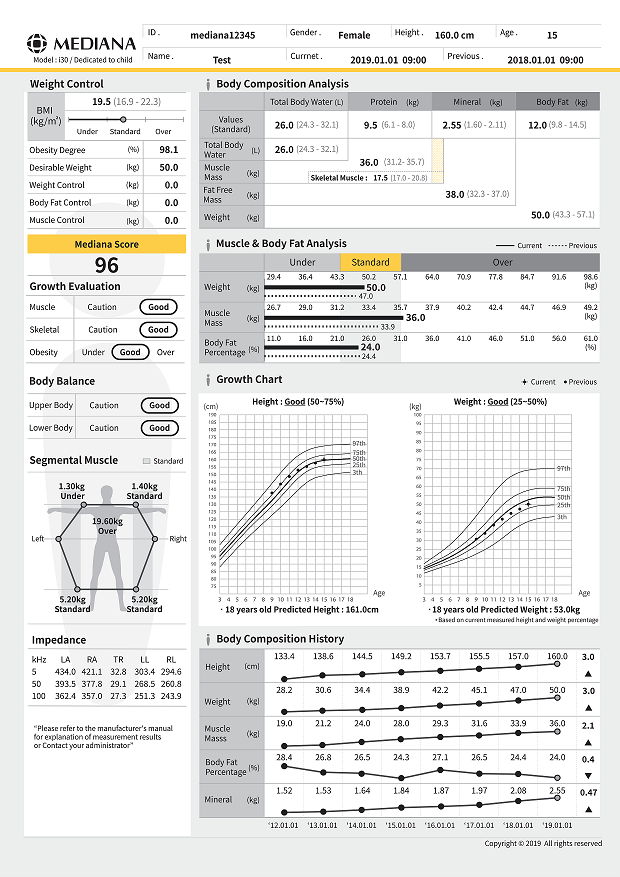

• Result Sheet Data (General Sheet)
üBody Composition Analysis : Total Body Water, Muscle Mass, Fat Mass, Fat Free Mass, Protein, Mineral, Skeletal Muscle
üMuscle & Fat Analysis : Weight, Muscle, Body Fat(%) Assessment with previous result value
üSegmental Analysis : Segmental Muscle, Fat and Body Balance Assessment
üBody Type Analysis : Body Type Table, Body Type Graph Assessment with previous result value
üBody Composition History : History Graph for Weight, Muscle, Body fat(%)
üWeight Control : BMI, Obesity Degree, Desirable Weight, Weight/Fat/Muscle Control
üVisceral Fat & Abdominal Fat Ratio Assessment
üIntake & Consumed Calories : BMR, Total Energy Expenditure, Calorie Consumption, Expected Fat Burning
üMEDIANA Score, Segmental Weight and Impedance, Calorie Consumption Table per Exercise
• Result Sheet Data (Children Sheet)
üBody Composition Analysis : Total Body Water, Muscle Mass, Fat Mass, Fat Free Mass, Protein, Mineral, Skeletal Muscle
üMuscle & Fat Analysis : Weight, Muscle, Body Fat(%) Assessment with previous result value
üGrowth Chart ; Height and Weight with 18 years old Predicted Value
üBody Composition History : History Graph for Weight, Muscle and Body fat(%), Height, Mineral
üWeight Control : BMI, Obesity Degree, Desirable Weight, Weight/Fat/Muscle Control
üGrowth Evaluation : Muscle, Skeletal, Obesity Evaluation
üBody Balance: Upper and Lower Body Balance Analysis
üMEDIANA Score, Segmental Weight and Impedance
• Product Specification
üMeasurement Frequency : 5, 50, 100kHz
üPower : Input - AC 100~240V, 50~60Hz, 1.5A / Output – DC 12V, 5A
üInput interface : Keypad, Touch screen, Barcode reader (Optional)
üExternal interface : RS232 (9pin serial cable) 1EA, USB host 2EA, Mini-USB B 1EA, Bluetooth (Optional), Wi-Fi (Optional)
üDisplay : 7 inch (600 x 1024), Color Touch LCD
üDimension : 360mm(W) x 559mm(D) x 1077mm(H)
üWeight : Appx. 17.5kg
üMeasurement Time : About 30 sec.
üOperating Environment : Temp. 10℃~40℃, Humidity 30%~75%, Air pressure 70~101.3kPa
üStorage Environment : Temp. -10℃~60℃, Humidity 10%~80%, Air pressure 50~101.3kPa
